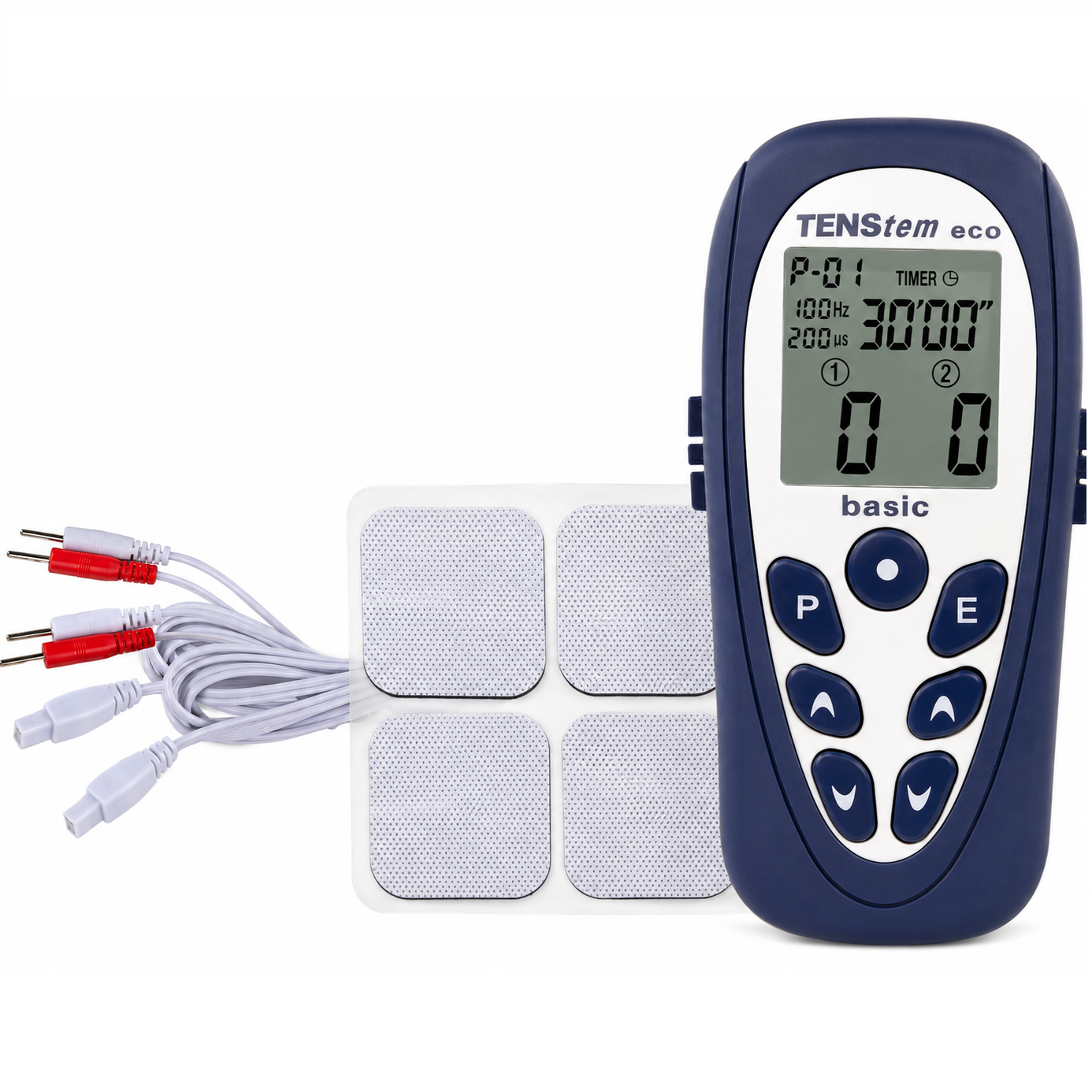

TENS + EMS + Ionto Eco-Basic Stimulator

Description

Features:

• 2 independent, electrically isolated channels.
• 4 reusable 50 x 50 mm adhesive electrodes.
• 12 preset constant-current programmes.
• 3 user-freely programmable C-series programmes.
• 1 iontophoresis programme: programme 16: red positive pole / white negative pole.
• Programme No. 9 works as muscle stimulation (EMS) for the upper and lower limbs.
• Power supply: 6.0 V (4 x 1.5 V AAA batteries).
• Current output: 0–60 mA (with 1 kΩ).
• Dimensions: 140 mm x 64 mm x 28 mm.
• Weight: 96 g (without battery).
• Frequency range: Series A and B: 2–100 Hz, Series C: 1–120 Hz.
• Pulse duration: Series A and B: 75–250 µs, Series C: 75–300 µs.
• Current types: rectangular biphasic, symmetrical and compensated asymmetrical, and monophasic.
• Operating conditions: Temperature range: 10°C to 40°C and relative humidity: 30% to 90%.
• Large display showing: selected programme, therapy time, intensity (separate per channel), frequency and pulse duration.
• Automatic shut-off after 2 min of non-use.
• Includes: programme lock, belt clip, treatment data and energy level indicator.

Presentation:
Supplied in a box of one unit.
